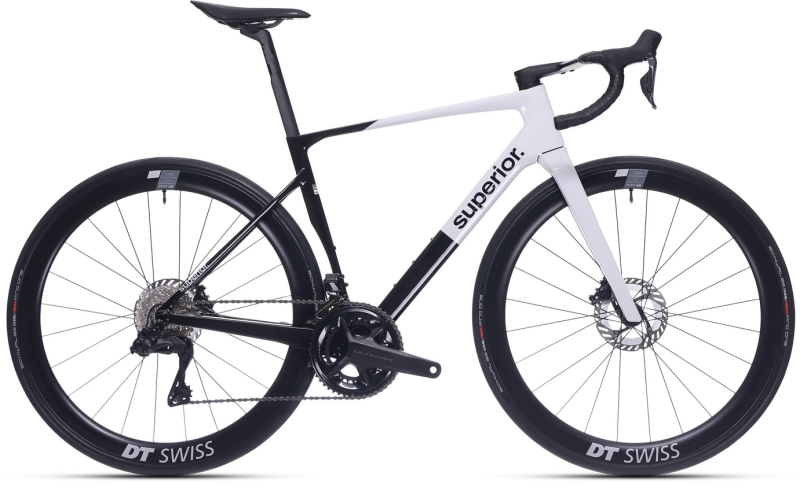

The XR 9.8 GF is a gran fondo bike that combines performance, speed, and comfort for long road rides, but thanks to its geometry and clearance up to 45mm tire width (with a 40mm front derailleur), it also offers great adaptability for gravel adventures. This versatile frame allows you to easily convert the bike from a road bike to a fast gravel bike, giving you the best of both worlds on one platform. Equipped with the Shimano Ultegra Di2 2x12 electronic drivetrain for precise shifting, and DT Swiss ERC 1400 DICUT® 45 mm carbon wheels, it ensures maximum stiffness and comfort. The carbon handlebar and stem combo provides perfect ergonomics and a clean look with no visible cables.

Specification: XR 9.8 GF

BASE INFO
WEIGHT 7.50 kg
ISO and EN norm
ISO norm ISO 4210-2 Road Racing bicycles
EN norm EN17406 Condition 2 For on and Off-Road riding and drops less than 15cm
LOAD CAPACITY 120 Kg
FRAMESET
FRAME SU-51-01, Carbon XR Race High Modulus, Road Advanced Geometry, Disc Brake Flat Mount, BB86.5, SH dropout, Thru Axle 142x12 mm, Inner cable routing, Di2 compatible, mudguards ready.
FORK XR Hi Modulus Carbon Fork
BOTTOM BRACKET SHIMANO BB-72-41B, PressFit, shell 41x86.5mm
HEADSET ACROS AIX-525R3S, ICR, OD56, IS52/28.6 - 40IPS
FRONT AXLE SB02-LT, TA12x119, M12xP1.5x8.5L, Light, Black
REAR AXLE SB02-LT, TA12x171.5, M12xP1.0x14.5L, Light, Black
DRIVETRAIN
SHIFTERS LEFT SHIMANO ULTEGRA R8170, Di2, 2-speed
SHIFTERS RIGHT SHIMANO ULTEGRA R8170, Di2, 12-speed
FRONT DERAILLEUR SHIMANO ULTEGRA FD-R8150, Down Swing, Brazed-On Type
REAR DERAILLEUR SHIMANO ULTEGRA RD-R8150, Shadow Design
CRANKSET SHIMANO ULTEGRA FC-R8100, Hollowtech II, 50-34T
CASSETTE SHIMANO ULTEGRA CS-R8101, 12-speed, 11-34T
CHAIN SHIMANO XT CN-M8100
BRAKING SYSTEM
BRAKE FRONT SHIMANO ULTEGRA R8170, hydraulic disc brake
ROTOR FRONT SHIMANO RT-CL800, 160mm
BRAKE REAR SHIMANO ULTEGRA R8170, hydraulic disc brake
ROTOR REAR SHIMANO RT-CL800, 140mm
WHEELS
WHEELSET FRONT DT Swiss ERC 1400 DICUT®, Carbon, CL, 12x100mm, Tubeless Ready
WHEELSET REAR DT Swiss ERC 1400 DICUT®, Carbon, CL, 12x142mm, SH11, Tubeless Ready
TIRE FRONT Schwalbe Pro One Evo, V-Guard, TL-Easy, 30-622, ADDIX Race
TIRE REAR Schwalbe Pro One Evo, V-Guard, TL-Easy, 30-622, ADDIX Race
COCKPIT
HANDLEBAR ONE Carbon Integrated Cockpit ICR
GRIPS LEFT ONE Handlebar Tape
PARTS
SADDLE Fizi:k Vento Argo R5, Alloy
SEATPOST ONE Aero Carbon
SEATPOST CLAMP Frame Integrated Clamp
CITY/ SUV SET
REAR LIGHT Litemove Rear Visibility Light, Red
