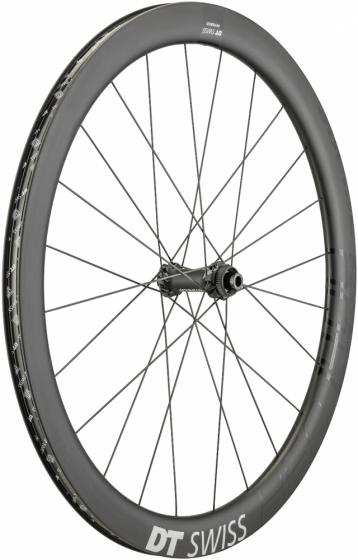

Dt Swiss HEC 1400 Spline 47 Disc

The wheelset that provides you with a stylish performance-upgrade for your high-end Endurance e-bike.
Weight per set from 1739 g


Product details

This HEC 1400 SPLINE flies the flag for our Hybrid Endurance category. This high-quality upgrade for ambitious Endurance e-road bikers (available in 62-mm and 47-mm rim heights) features a SPLINE hub with Ratchet System technology as well as hybrid-specific reinforced straightpull spokes. The Aero+ concept developed with SwissSide guarantees maximum speed and outstanding handling. Thanks to its aerodynamic properties, the 62-mm version in particular also offers genuine competitive character.

Hub type : 240 with Ratchet System 24
Rim: Carbon, Clincher
Rim height: 47 mm
Spokes: DT aero comp® hybrid straightp

FRONT WHEEL :

HEC 1400 SPLINE db 47 12/100 mm
WHEC140AIDXCA11402


Net weight 761 g
max. system weight 130 kg
ASTM classification 2

Material Carbon
Rim type Clincher
Rim diameter 29" / 700C
Rim height 47 mm
Decal type Waterslide
Inner width 19 mm
Outer width 27 mm
Cross-section

Hub type 240
Axle system 12 mm Thru Axle
Built-in dimension 100 mm
Brake interface Disc Center Lock
Freehub body -
Freehub system -

Spokes DT aero comp® hybrid straightp
Spoke pattern 2-cross (1:1)
Nipples DT Pro Lock hidden aluminum

Inclusive Tubeless tape 21 mm
TL valve alu black 36-48 mm
IS 6-bolt adapter Road
valve guard

REAR WHEEL :

HEC 1400 SPLINE db 47 12/142 mm Shimano
WHEC140NIDVCA11403
General

Net weight 978 g
max. system weight 130 kg
ASTM classification 2

Rim

Material Carbon
Rim type Clincher
Rim diameter 29" / 700C
Rim height 47 mm
Decal type Waterslide
Inner width 19 mm
Outer width 27 mm
Cross-section

Hub

Hub type 240
Axle system 12 mm Thru Axle
Built-in dimension 142 mm
Brake interface Disc Center Lock
Freehub body Shimano RD. 11SP Steel (SS11)
Freehub system Ratchet System 24

Spokes & Nipples

Spokes DT aero comp® hybrid straightp
Spoke pattern 3-cross (1:1)
Nipples DT Pro Lock hidden aluminum

Inclusive

Inclusive Tubeless tape 21 mm
TL valve alu black 36-48 mm
IS 6-bolt adapter Road
SRAM XDR Road freehub body kit
valve guard

Available technical data:
