Campagnolo Chorus Disc Ultra-Shift Ergopower 2x12s with Caliper 2020

Category: Equipment > Components > CAMPAGNOLO


Base price:865.85 $
Current price:865.85 $
Reduction:terms-173.17 $
Your price:692.68 $
Estimated shipping price:terms22.09 $
(per item):
Note: VAT charge is excluded for buyers outside Switzerland

Options:


Quantity



  • Description
  • Specifications

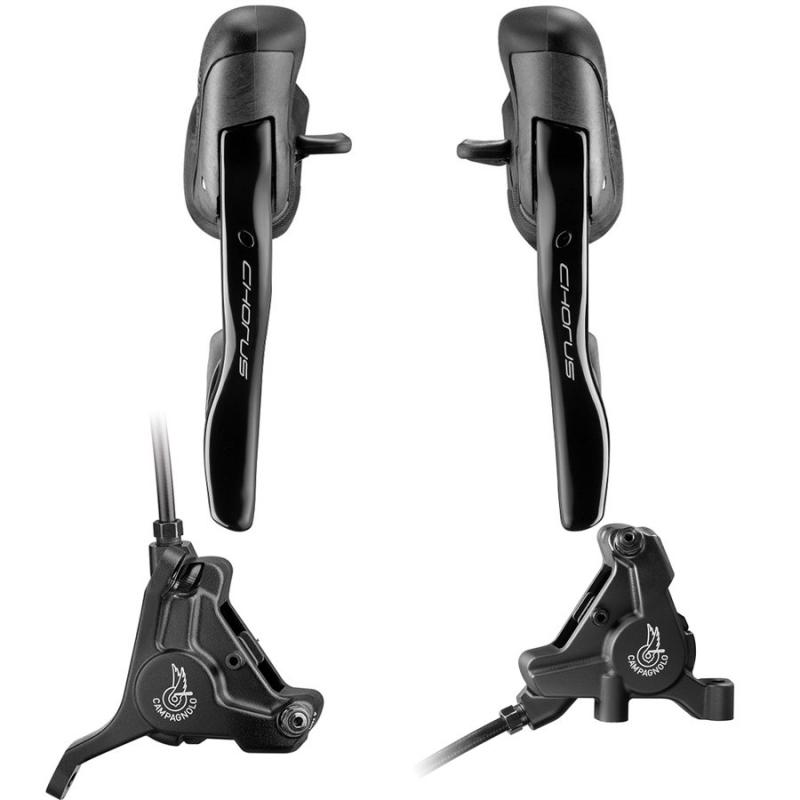

Campagnolo Chorus Ergopower + Hydraulic Disc-Brake - Flat Mount - right | 12-speed

The shifting & braking control center of the Chorus 12 DB Movement
The fantastic ergonomics that over the years have become a sort of calling card for Campagnolo have been even further improved with the latest introduction of Super Record and Record 12-speed drivetrains. Not just ergonomic but also customizable, this standard is embodied in the design of the Chorus levers. Apart from the brake lever, made from aluminium but with a coating that enhances its finish and its feel, Chorus Ergopower are almost identical to those on the Super Record and Record controls. Ergonomic characteristics, such as the design of the brake lever hoods, the design of the brake levers and bigger gear levers, team with characteristics that make the shape of Ergopower controls unique for cyclists’ needs. The Ergopower Chorus 12-speed DB controls incorporate a reach adjustment system to position the brake lever an optimum distance from the handlebar. Campagnolo’s tried and tested one-lever-one-action philosophy ensures no-confusion control, regardless of the cycling conditions or the cyclist’s position. The Ultra-Shift mechanism controls the 12-speed rear derailleur, letting the rider shift up by up to 3 sprockets and down by up to 5 sprockets in a single movement.

Flat Mount Disc Brake Calipers

The flat-mount Campagnolo brake callipers ensure powerful, modular braking in any situation owing to pistons measuring 22 millimetres in diameter. Brake pad return guaranteed by the magnetic system ensures that there is no friction at the time of brake lever release. A special metal plate positioned between the pad and the calliper piston, cushions the vibrations during braking.
It is indeed possible to choose the rear brake caliper with a disc measuring either 140 mm or 160 mm in diameter and to use a specific 160 mm front caliper. Additionally, work was done on the insertion of the disc in the caliper to make changing the wheel easier and faster.

Flat Mount
Campagnolo disc brake calipers are suitable on all Flat Mount forks and frames. Thanks to this standard the assembly is allowed without converters or adapters. While the caliper is assembled directly on the fork, increasing a lot the stiffness of the complete system. This is the ideal configuration for racing. The Campagnolo solution needs only 2 bolts for assembling the caliper on the fork. This allows to leave out the two bolts that you can’t inspect.

Brake pads
Removing the pads you can immediately understand if you need to replace them. The replacement is needed when the thickness of the compound reaches the wear indicator at 1.5 mm.
Chamfered bottoms allow for easier wheel replacement because the rotor is helped from the pads shapes when entering in the caliper A metal sheet damps the vibrations coming from the braking phase. Semi-metallic formulation tuning provide the use in dry and wet condition without compromises.

Features & Benefits
ULTRA-SHIFT™ ergonomics
Shaped cushioning ensures a firm grip on the handlebars and fast, precise control of the levers regardless of hand or finger size. The special ergonomic design makes it possible to assume three different hand positions on the levers compared to the two traditional ones.

VARI-CUSHION™ brake lever hoods with variable density and surface finishes
Natural silicone material with differentiated areas to follow the grip of the 1st and 2nd finger. The grooved areas drain away water, keeping the brake lever hoods dry and improving grip. Internal weave to create a variable thickness that guarantees maximum possible comfort.

ULTRA-SHIFT™ mechanism
This technology allows multiple shifting, letting the rider shift up by up to 3 sprockets and down by up to 5 sprockets in a single movement. Rapid positioning on the combination desired when there is a steep increase in the slope or when approaching a corner (up to 4 combinations with chain on the frst 4 sprockets, up to 3 combinations with chain above the fourth sprocket).

For performance, longevity and functionality the Chorus drivetrain must be used with the mechanical Campagnolo 12-speed drivetrain components.
Brake discs are not included. They can be ordered separately.
Brake caliper: Flat Mount
Brake fluid: Mineral oil
Brake hose: front/rear: 2000 mm
Braking pads: organic
Disc: without brake discs, these items have to be purchased separately
Included in delivery: left & right Ergopower shift-/brake-control + brake caliper front & rear
incl. brake hose
without brake disc
Available technical data:
