Superior XR 9.7 GR 2025
Category: GRAVEL
- Description
- Specifications

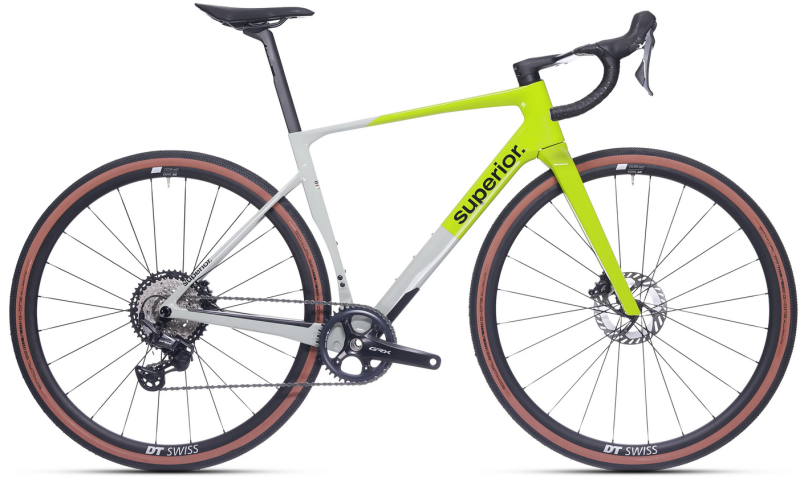

The XR 9.7 GR gravel bike combines performance, speed, and comfort in one package. The ultra-light carbon frame with innovative geometry pushes the boundaries of performance, delivering an addictive riding experience. The frame offers clearance for tyres up to 45mm wide (using a 40mm front derailleur) and is compatible with UDH and ICR systems. This model is perfect for both gravel and road rides, offering great versatility for fast and challenging terrains. The bike is equipped with the Shimano GRX 1x12 drivetrain for great functionality, shifting accuracy, and reliability. Lightweight DT Swiss GR 1600 SPLINE® wheels and a carbon handlebar and stem combo ensure maximum comfort and excellent handling.
BASE INFO
WEIGHT 8.45 kg
ISO and EN norm
ISO norm ISO 4210-2 Road Racing bicycles
EN norm EN17406 Condition 2 For on and Off-Road riding and drops less than 15cm
LOAD CAPACITY 120 Kg
FRAMESET
FRAME SU-51-01, Carbon XR Race High Modulus, Road Advanced Geometry, Disc Brake Flat Mount, BB86.5, SH dropout, Thru Axle 142x12 mm, Inner cable routing, Di2 compatible, mudguards ready.
FORK XR Hi Modulus Carbon Fork
BOTTOM BRACKET SHIMANO BB-RS500PB, PressFit, shell 41x86.5mm
HEADSET ACROS AIX-525R3S, ICR, OD56, IS52/28.6 - 40IPS
FRONT AXLE SB02-LT, TA12x119, M12xP1.5x8.5L, Light, Black
REAR AXLE SB02-LT, TA12x171.5, M12xP1.0x14.5L, Light, Black
DRIVETRAIN
SHIFTERS RIGHT SHIMANO GRX RX820, 12-speed
REAR DERAILLEUR SHIMANO GRX RD-RX822, Shadow Plus Design
CRANKSET SHIMANO GRX FC-RX820, Hollowtech II, 42T
CASSETTE SHIMANO XT CS-M8100, 12-speed, 10-45T
CHAIN SHIMANO XT CN-M8100
BRAKING SYSTEM
BRAKE FRONT SHIMANO GRX RX820, hydraulic disc brake
ROTOR FRONT SHIMANO RT-CL800, 160mm
BRAKE REAR SHIMANO GRX RX820, hydraulic disc brake
ROTOR REAR SHIMANO RT-CL800, 140mm
WHEELS
WHEELSET FRONT DT Swiss GR 1600 SPLINE®, CL, 12x100mm, Tubeless Ready
WHEELSET REAR DT Swiss GR 1600 SPLINE®, CL, 12x142mm, SH12, Tubeless Ready
TIRE FRONT Schwalbe G-One Allround, RaceGuard, TL-Easy, 40-622, ADDIX
TIRE REAR Schwalbe G-One Allround, RaceGuard, TL-Easy, 40-622, ADDIX
COCKPIT
HANDLEBAR ONE Carbon Integrated Cockpit ICR
GRIPS LEFT ONE Handlebar Tape
PARTS
SADDLE Fizi:k Vento Argo R5, Alloy
SEATPOST ONE Aero Carbon
SEATPOST CLAMP Frame Integrated Clamp
CITY/ SUV SET
REAR LIGHT Litemove Rear Visibility Light, Red
BASE INFO
WEIGHT 8.45 kg
ISO and EN norm
ISO norm ISO 4210-2 Road Racing bicycles
EN norm EN17406 Condition 2 For on and Off-Road riding and drops less than 15cm
LOAD CAPACITY 120 Kg
FRAMESET
FRAME SU-51-01, Carbon XR Race High Modulus, Road Advanced Geometry, Disc Brake Flat Mount, BB86.5, SH dropout, Thru Axle 142x12 mm, Inner cable routing, Di2 compatible, mudguards ready.
FORK XR Hi Modulus Carbon Fork
BOTTOM BRACKET SHIMANO BB-RS500PB, PressFit, shell 41x86.5mm
HEADSET ACROS AIX-525R3S, ICR, OD56, IS52/28.6 - 40IPS
FRONT AXLE SB02-LT, TA12x119, M12xP1.5x8.5L, Light, Black
REAR AXLE SB02-LT, TA12x171.5, M12xP1.0x14.5L, Light, Black
DRIVETRAIN
SHIFTERS RIGHT SHIMANO GRX RX820, 12-speed
REAR DERAILLEUR SHIMANO GRX RD-RX822, Shadow Plus Design
CRANKSET SHIMANO GRX FC-RX820, Hollowtech II, 42T
CASSETTE SHIMANO XT CS-M8100, 12-speed, 10-45T
CHAIN SHIMANO XT CN-M8100
BRAKING SYSTEM
BRAKE FRONT SHIMANO GRX RX820, hydraulic disc brake
ROTOR FRONT SHIMANO RT-CL800, 160mm
BRAKE REAR SHIMANO GRX RX820, hydraulic disc brake
ROTOR REAR SHIMANO RT-CL800, 140mm
WHEELS
WHEELSET FRONT DT Swiss GR 1600 SPLINE®, CL, 12x100mm, Tubeless Ready
WHEELSET REAR DT Swiss GR 1600 SPLINE®, CL, 12x142mm, SH12, Tubeless Ready
TIRE FRONT Schwalbe G-One Allround, RaceGuard, TL-Easy, 40-622, ADDIX
TIRE REAR Schwalbe G-One Allround, RaceGuard, TL-Easy, 40-622, ADDIX
COCKPIT
HANDLEBAR ONE Carbon Integrated Cockpit ICR
GRIPS LEFT ONE Handlebar Tape
PARTS
SADDLE Fizi:k Vento Argo R5, Alloy
SEATPOST ONE Aero Carbon
SEATPOST CLAMP Frame Integrated Clamp
CITY/ SUV SET
REAR LIGHT Litemove Rear Visibility Light, Red
