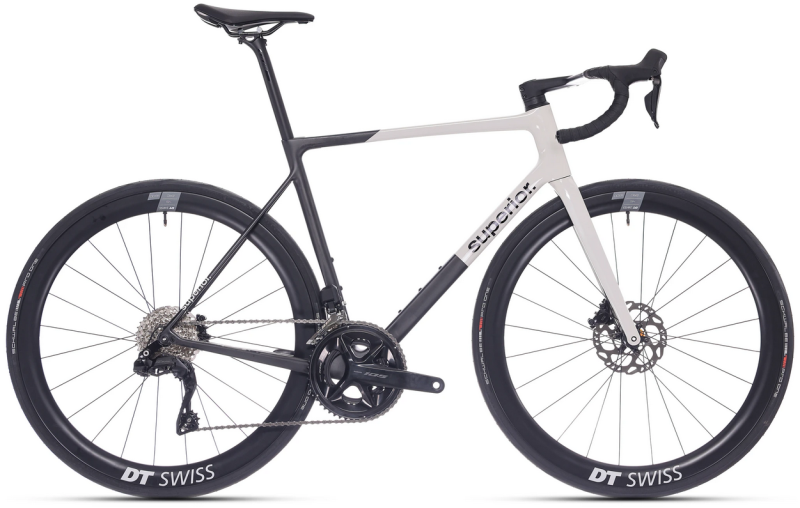

The new RR 9.6 road bike is the ideal choice for those seeking speed, efficiency, and top performance on the road. The new road frame made from Mid-Modulus carbon offers the perfect balance of stiffness and lightweight performance, ensuring optimal power transfer and maximum efficiency during every ride. The bike is equipped with the Shimano 105 Di2 2x12 electric drivetrain, meeting the most demanding racing requirements, with fast and uncompromising shifting. DT Swiss ERC 1600 DICUT® 45 mm carbon wheels guarantee maximum stiffness, comfort, and speed. The carbon handlebar and stem combo provides perfect ergonomics and cable integration, offering a clean design and enhanced handling.
Specification: RR 9.6
BASE INFO
WEIGHT 8.00 kg
ISO and EN norm
ISO norm ISO 4210-2 Road Racing bicycles
EN norm EN17406 Condition 2 For on and Off-Road riding and drops less than 15cm
LOAD CAPACITY 120 Kg
FRAMESET
FRAME BF-FB-08, Carbon RR Mid Modulus, Road Advanced Geometry, Disc Brake Flat Mount, BSA 68, SH dropout, Thru Axle 142x12 mm, Inner cable routing, Di2 compatible.
FORK RR Mid Modulus Carbon Fork, Rake 50mm
BOTTOM BRACKET SHIMANO BB-RS501, BSA, shell 68mm
HEADSET ACROS AIX-525, ICR, OD56, IS52/28.6 - 40IPS
FRONT AXLE ONE, TA12x120, M12xP1.0x15L, Black
REAR AXLE ONE, TA12x161, M12xP1.0x9.2mm, Black
DRIVETRAIN
SHIFTERS LEFT SHIMANO 105 R7170, Di2, 2-speed
SHIFTERS RIGHT SHIMANO 105 R7170, Di2, 12-speed
FRONT DERAILLEUR SHIMANO 105 FD-R7150, Down Swing, Brazed-On Type
REAR DERAILLEUR SHIMANO 105 RD-R7150, Shadow Design
CRANKSET SHIMANO 105 FC-R7100, Hollowtech II, 50-34T
CASSETTE SHIMANO 105 CS-R7101, 12 speed, 11-34T
CHAIN SHIMANO DEORE CN-M6100
BRAKING SYSTEM
BRAKE FRONT SHIMANO 105 R7170, hydraulic disc brake
ROTOR FRONT SHIMANO SM-RT70, 160mm
BRAKE REAR SHIMANO 105 R7170, hydraulic disc brake
ROTOR REAR SHIMANO SM-RT70, 140mm
WHEELS
WHEELSET FRONT DT Swiss ERC 1600 SPLINE®, Carbon, CL, 12x100mm, Tubeless Ready
WHEELSET REAR DT Swiss ERC 1600 SPLINE®, Carbon, CL, 12x142mm, SH11, Tubeless Ready
TIRE FRONT Schwalbe Pro One Evo, V-Guard, TL-Easy, 28-622, ADDIX Race
TIRE REAR Schwalbe Pro One Evo, V-Guard, TL-Easy, 28-622, ADDIX Race
COCKPIT
HANDLEBAR ONE Carbon Integrated Cockpit ICR
GRIPS LEFT ONE Handlebar Tape
PARTS
SADDLE Selle Royal SRX, 148mm
SEATPOST ONE Carbon, Offset 13mm
SEATPOST CLAMP Frame Integrated Clamp
Available technical data:
