Superior XR 6.5 GR 2025
Category: GRAVEL
- Description
- Specifications

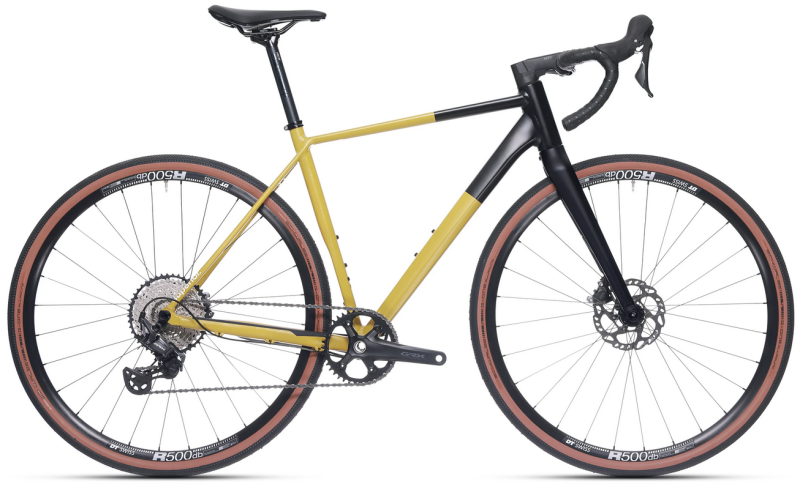

Aluminum variant of the popular X-Road model in a gravel setup. The high-quality triple-butted aluminum alloy together with meticulously selected geometry ensures a balanced ratio of speed and comfort. We fitted the X-Road with a Shimano GRX 1x12 gravel set for maximum variability on road and light terrain. Comfort is guaranteed by the ONE carbon fork and aluminum accessories as well as light and fast Schwalbe G-One tires with a width of 40 mm. You will appreciate clever details such as hidden mounting points for attaching light mudguards, or a magnetic removable lever for mounting fixed axles.
Specification: X-ROAD 6.5 GR
BASE INFO
WEIGHT 10.45 kg
ISO and EN norm
ISO norm ISO 4210-2 Road Racing bicycles
EN norm EN17406 Condition 2 For on and Off-Road riding and drops less than 15cm
LOAD CAPACITY 120 Kg
FRAMESET
FRAME Alu X6 Ultralite X-Road Race , Road Advanced Geometry, Smooth Welding, Disc Brake Flat mount, BB BSA 68mm, Integrated Cable Routing, Full Carbon front fork; mudguadrs ready
FORK X-ROAD Carbon Fork
BOTTOM BRACKET SHIMANO, Cartridge Bearing
HEADSET ACROS AIX-525, ICR, OD56, IS52/28.6 - 40IPS
FRONT AXLE SB02, TA12x119, M12xP1.5x8.5L, Black
REAR AXLE SB02, TA12x165, M12xP1.5x14L, Black
DRIVETRAIN
SHIFTERS RIGHT SHIMANO GRX RX610, 12-speed
REAR DERAILLEUR SHIMANO GRX RD-RX822, Shadow Plus Design
CRANKSET SHIMANO GRX FC-RX610, 40T
CASSETTE SHIMANO SLX CS-M7101, 12-speed, 10-45T
CHAIN SHIMANO DEORE CN-M6100
BRAKING SYSTEM
BRAKE FRONT SHIMANO GRX RX610, hydraulic disc brake
ROTOR FRONT SHIMANO SM-RT70, 160mm
BRAKE REAR SHIMANO GRX RX610, hydraulic disc brake
ROTOR REAR SHIMANO SM-RT70, 140mm
WHEELS
HUB FRONT SHIMANO HB-RS470, 28H, CL, 12x100mm, THRU Type AXLE
RIM FRONT DT Swiss R500, Disc, 28H, Tubeless Ready
TIRE FRONT Schwalbe G-One Allround, RaceGuard, TL-Easy, 40-622, ADDIX
HUB REAR SHIMANO FH-MT410, 28H, CL, 12x142mm, THRU Type AXLE
RIM REAR DT Swiss R500, Disc, 28H, Tubeless Ready
TIRE REAR Schwalbe G-One Allround, RaceGuard, TL-Easy, 40-622, ADDIX
SPOKES SAPIM Race, Stainless Black
NIPPLES SAPIM, Brass
COCKPIT
STEM ONE Race ICR, Alloy, 31,8mm, -7°
HANDLEBAR ONE Alloy, X-Race Aero, 31.8mm, Reach 70mm, Drop 127mm, Flare 2°, Backsweep 6°
GRIPS LEFT ONE Handlebar Tape
PARTS
SADDLE Selle Royal SRX, 148mm
SEATPOST ONE Race, Alloy, 27.2mm
SEATPOST CLAMP ONE CC-080A, 31.8mm, Black
Specification: X-ROAD 6.5 GR
BASE INFO
WEIGHT 10.45 kg
ISO and EN norm
ISO norm ISO 4210-2 Road Racing bicycles
EN norm EN17406 Condition 2 For on and Off-Road riding and drops less than 15cm
LOAD CAPACITY 120 Kg
FRAMESET
FRAME Alu X6 Ultralite X-Road Race , Road Advanced Geometry, Smooth Welding, Disc Brake Flat mount, BB BSA 68mm, Integrated Cable Routing, Full Carbon front fork; mudguadrs ready
FORK X-ROAD Carbon Fork
BOTTOM BRACKET SHIMANO, Cartridge Bearing
HEADSET ACROS AIX-525, ICR, OD56, IS52/28.6 - 40IPS
FRONT AXLE SB02, TA12x119, M12xP1.5x8.5L, Black
REAR AXLE SB02, TA12x165, M12xP1.5x14L, Black
DRIVETRAIN
SHIFTERS RIGHT SHIMANO GRX RX610, 12-speed
REAR DERAILLEUR SHIMANO GRX RD-RX822, Shadow Plus Design
CRANKSET SHIMANO GRX FC-RX610, 40T
CASSETTE SHIMANO SLX CS-M7101, 12-speed, 10-45T
CHAIN SHIMANO DEORE CN-M6100
BRAKING SYSTEM
BRAKE FRONT SHIMANO GRX RX610, hydraulic disc brake
ROTOR FRONT SHIMANO SM-RT70, 160mm
BRAKE REAR SHIMANO GRX RX610, hydraulic disc brake
ROTOR REAR SHIMANO SM-RT70, 140mm
WHEELS
HUB FRONT SHIMANO HB-RS470, 28H, CL, 12x100mm, THRU Type AXLE
RIM FRONT DT Swiss R500, Disc, 28H, Tubeless Ready
TIRE FRONT Schwalbe G-One Allround, RaceGuard, TL-Easy, 40-622, ADDIX
HUB REAR SHIMANO FH-MT410, 28H, CL, 12x142mm, THRU Type AXLE
RIM REAR DT Swiss R500, Disc, 28H, Tubeless Ready
TIRE REAR Schwalbe G-One Allround, RaceGuard, TL-Easy, 40-622, ADDIX
SPOKES SAPIM Race, Stainless Black
NIPPLES SAPIM, Brass
COCKPIT
STEM ONE Race ICR, Alloy, 31,8mm, -7°
HANDLEBAR ONE Alloy, X-Race Aero, 31.8mm, Reach 70mm, Drop 127mm, Flare 2°, Backsweep 6°
GRIPS LEFT ONE Handlebar Tape
PARTS
SADDLE Selle Royal SRX, 148mm
SEATPOST ONE Race, Alloy, 27.2mm
SEATPOST CLAMP ONE CC-080A, 31.8mm, Black
Available technical data:
