Dt Swiss CRC 1100 Spline 38 Disc Tubular

Category: Wheels and Tyres > WHEELS > DT Swiss > Cross


Base price:1,172.93 $
Current price:1,172.93 $
Reduction:terms-293.23 $
Your price:879.70 $
Estimated shipping price:terms107.61 $
(per item):
Note: VAT charge is excluded for buyers outside Switzerland

Options:


Quantity



  • Description
  • Specifications
Please, ask for availability before ordering.
Thank you.

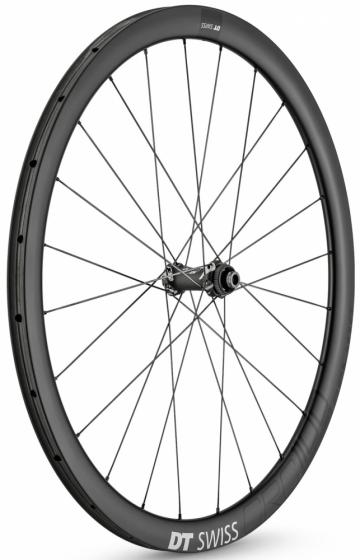

Dt Swiss CRC 1100 Spline 38 Disc Tubular

DT Swiss CRC 1100 SPLINE 32 Carbon centre lock disc 28" tubular wheelset - competition bikes for Cyclocross riders
The CRC 1100 SPLINE wheelset from DT Swiss gives you a carbon foundation in 28" for your Cyclocross bike. The rim is intended for tubular tyres. The SINC ceramic bearings are durable and corrosion resistant. With straight pull spokes and a reinforced hub, the SPLINE body withstands even the toughest off-road use. The wheels are especially light, which allows you to accelerate quickly. This is particularly advantageous during competitions.

Specifications:
Application: Cyclocross
Wheel Size: 28"
Tyre Type: tubular
Number of Spokes: 24
Brake Type: Centre Lock disc

Technical Information - Rim:
Dimensions (ETRTO): 26-622
Rim Width: 26 mm
Depth: 38 mm
Valve Hole Diameter: Presta (6.5 mm)
Rim Material: carbon

Technical Information - Front Hub:
Type: 240 straight pull
Over Locknut Dimension: 12 x 100 mm thru-axle, can be converted to a 15 x 100 mm thru-axle or a 9 x 100 mm quick release
Bearings: Ceramic bearings (SINC)
Body Material: aluminium

Technical Information - Rear Hub:
Type: 240 straight pull
Over Locknut Dimension: 12 x 142 mm thru-axle, convertible to 10 x 135 mm quick release
Bearings: Ceramic bearings (SINC)
Body Material: aluminium
Freehub Body Material: aluminium
Freehub Body: Ratchet 36

Technical Information - Lacing:
Front Lacing Pattern: 2-cross
Rear Lacing Pattern: 2-cross
Spoke Type: DT Aero Comp straight pull
Spoke Material: stainless steel (18/10)
Nipple Type: DT Pro Squorx
Nipple Size: 15 mm (length) / 2 mm (diameter)
Nipple Material: aluminium

Approved For:
Weight Limit: 120 kg (system weight)

Technology:
Intended use - Category 2:
Suitable for the use on predominantly paved and partially unpaved ground with a slight slope and a temporary loss of ground contact as well as drops of up to 15 cm.

SPLINE:
Straight pull hubs, straight spokes and strong rims result in a durable wheel. It can therefore be reliably used in training and competition.

Ratchet System:
The robust and reliable star ratchets freehub system can be maintained easily and quickly. The no-tool concept contributes to this, because it allows disassembly without any tools. The freehub has two discs which engage simultaneously. This means that the contact surface is large and the point load is kept small, which exonerates the material and allows the freehub to work particularly reliably and precisely.

Pro Lock:
The nipple thread is coated with two-component adhesive to increase the durability of the wheels. It can still be re-centred several times without any problems, this adhesive strength will only slightly decrease. The connection between spoke and nipple cannot loosen by itself.

SINC:
Robust steel bearing rings are combined with ceramic balls. This means that the rolling resistance is low. The rolling resistance is further reduced by the seal on the outside and a protective ring on the inside. Furthermore, the combination of materials prevents corrosion between the ring and balls. This increases the durability of the ball bearings.

Colour Index:
black:
- Rim: black
- Hubs: black-silver
- Spokes: black
- Nipples: black

Models:
28" set (front 12x100 + rear 12x142) Shimano:
Freehub: Shimano Road
Gearing: 8-/9-/10-/11-speed
Note: Assembly of 8-/9-/10-speed cassettes on Shimano Road freehub bodies requires a 1.85 mm spacer.
Manufacturer Part Numbers: WCRC110AIDXCA07135 + WCRC110NIDJCA07138

Contents:
- 1 x DT Swiss CRC 1100 SPLINE Carbon wheelset (front and rear)
- 1 x DT Swiss SRAM XDR freehub body
- 2 x DT Swiss adapters for converting to a 6-bolt disc
- 2 x DT Swiss 5 mm end cap sets
- 1 x DT Swiss 15 mm end cap sets
- 2 x DT Swiss wheel bag
- 2 x valve protectors
