Cervélo S5 Disc 2026, SRAM Red AXS
Category: BICYCLE ROAD
- Description
- Specifications
Please, Before ordering, contact us for availability. Thank you.

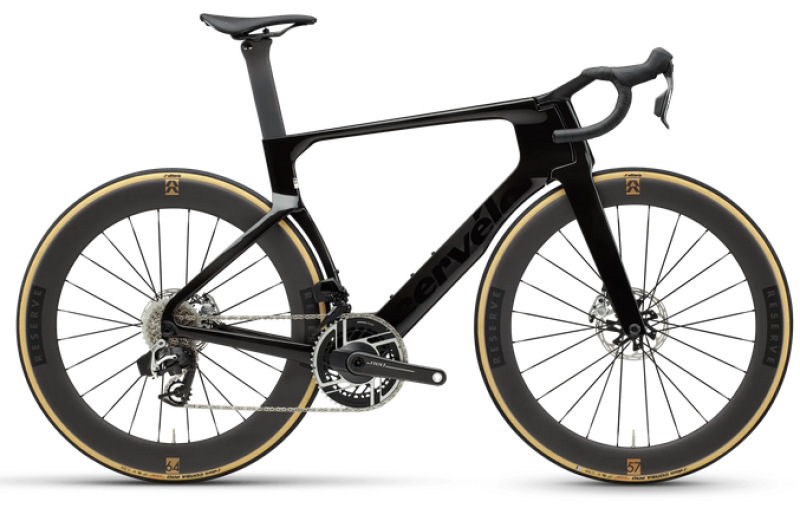

Note: The image depicts only the color of the bicycle. Component specifications may vary from those listed in the description.
Cervélo S5 – Built to Win
The Cervélo S5 isn’t just another aero bike – it’s the machine that carried Tour de France champions Jonas Vingegaard and Wout van Aert to victory. Engineered for pure speed, the S5 has been refined to be faster, lighter, and more aerodynamic than ever before.
With its iconic silhouette, the new S5 takes every watt further. A reimagined one-piece cockpit, integrated Reserve 57/64 wheels, and optimized tube shaping deliver a seamless flow of speed and stability. The result: 6.3 watts gained, 124 grams lost, and a ride that feels unstoppable.
Aerodynamic advantage – optimized frame, cockpit, and wheelset for maximum speed.
Lightweight performance – redesigned cockpit and refined carbon layup shed grams without compromise.
Integrated Reserve wheels – faster, stiffer, and perfectly tuned to the frame.
Race-ready geometry – improved stability and comfort with clearance up to 29mm tires.
The S5 is more than a bike – it’s a statement. Every detail is crafted to turn power into performance, and performance into victory.
Cervélo S5 – when winning is the only option.
SRAM Red AXS
Sizes
48cm, 51cm, 54cm, 56cm, 58cm, 61cm
Fork
Cervélo All-Carbon, Bayonet S5 Fork
Integrated Handlebar
Cervélo HB19 Carbon
Handlebar Width
Size 48 – 36cm
Size 51 – 38cm
Size 54 – 40cm
Size 56 – 40cm
Size 58 – 40cm
Size 61 – 40cm
Stem Length
Size 48 – 80mm
Size 51 – 90mm
Size 54 – 100mm
Size 56 – 100mm
Size 58 – 110mm
Size 61 – 120mm
Seatpost
Cervélo SP34 Carbon
Seatpost Offset
Size 48 – 0mm
Size 51 – 0mm
Size 54 – 0mm
Size 56 – 0mm
Size 58 – 15mm
Size 61 – 15mm
Saddle
Selle Italia NOVUS BOOST EVO SuperFlow Carbon
Bottom Bracket
SRAM DUB Ceramic, BBright
Headset
FSA SL IS2 1-1/8, 36° x 45° / 1-3/8, 36° x 45°
Thru Axles
Front: Cervélo Aero Thru Axle, M12x1.5mm, 122mm length
Rear: Cervélo Aero Thru Axle, M12x1.0mm, 169mm length
Wheels
Front: Reserve 57TA, DT Swiss 180, 12x100mm, 24H, centerlock, tubeless compatible
Rear: Reserve 64TA, DT Swiss 180, 12x142mm, XDR freehub, 24H, centerlock, tubeless compatible
Tires
Vittoria Corsa Pro TLR G2.0 700x29c
Brake Levers
SRAM Red AXS E1
Crankset
SRAM Red AXS E1, 50/37T, DUB, with power meter
Power Meter
4iiii Precision Pro, GEN3+ Dual Sided
Crank Lengths
Size 48 – 165mm
Size 51 – 165mm
Size 54 – 170mm
Size 56 – 170mm
Size 58 – 172.5mm
Size 61 – 172.5mm
Chain
SRAM Red E1
Cassette
SRAM Red E1, 10-33T, 12-Speed
Front Derailleur
SRAM Red AXS E1
Rear Derailleur
SRAM Red AXS E1
Brake Rotors
SRAM Paceline X Centerlock
Accessories
Cervélo Front Computer/Accessory Mount 887
Cervélo Rear Accessory Mount
Hammerhead Karoo 3
Maximum Tire Width (actual)
34mm
Note: The image depicts only the color of the bicycle. Component specifications may vary from those listed in the description.
Cervélo S5 – Built to Win
The Cervélo S5 isn’t just another aero bike – it’s the machine that carried Tour de France champions Jonas Vingegaard and Wout van Aert to victory. Engineered for pure speed, the S5 has been refined to be faster, lighter, and more aerodynamic than ever before.
With its iconic silhouette, the new S5 takes every watt further. A reimagined one-piece cockpit, integrated Reserve 57/64 wheels, and optimized tube shaping deliver a seamless flow of speed and stability. The result: 6.3 watts gained, 124 grams lost, and a ride that feels unstoppable.
Aerodynamic advantage – optimized frame, cockpit, and wheelset for maximum speed.
Lightweight performance – redesigned cockpit and refined carbon layup shed grams without compromise.
Integrated Reserve wheels – faster, stiffer, and perfectly tuned to the frame.
Race-ready geometry – improved stability and comfort with clearance up to 29mm tires.
The S5 is more than a bike – it’s a statement. Every detail is crafted to turn power into performance, and performance into victory.
Cervélo S5 – when winning is the only option.
SRAM Red AXS
Sizes
48cm, 51cm, 54cm, 56cm, 58cm, 61cm
Fork
Cervélo All-Carbon, Bayonet S5 Fork
Integrated Handlebar
Cervélo HB19 Carbon
Handlebar Width
Size 48 – 36cm
Size 51 – 38cm
Size 54 – 40cm
Size 56 – 40cm
Size 58 – 40cm
Size 61 – 40cm
Stem Length
Size 48 – 80mm
Size 51 – 90mm
Size 54 – 100mm
Size 56 – 100mm
Size 58 – 110mm
Size 61 – 120mm
Seatpost
Cervélo SP34 Carbon
Seatpost Offset
Size 48 – 0mm
Size 51 – 0mm
Size 54 – 0mm
Size 56 – 0mm
Size 58 – 15mm
Size 61 – 15mm
Saddle
Selle Italia NOVUS BOOST EVO SuperFlow Carbon
Bottom Bracket
SRAM DUB Ceramic, BBright
Headset
FSA SL IS2 1-1/8, 36° x 45° / 1-3/8, 36° x 45°
Thru Axles
Front: Cervélo Aero Thru Axle, M12x1.5mm, 122mm length
Rear: Cervélo Aero Thru Axle, M12x1.0mm, 169mm length
Wheels
Front: Reserve 57TA, DT Swiss 180, 12x100mm, 24H, centerlock, tubeless compatible
Rear: Reserve 64TA, DT Swiss 180, 12x142mm, XDR freehub, 24H, centerlock, tubeless compatible
Tires
Vittoria Corsa Pro TLR G2.0 700x29c
Brake Levers
SRAM Red AXS E1
Crankset
SRAM Red AXS E1, 50/37T, DUB, with power meter
Power Meter
4iiii Precision Pro, GEN3+ Dual Sided
Crank Lengths
Size 48 – 165mm
Size 51 – 165mm
Size 54 – 170mm
Size 56 – 170mm
Size 58 – 172.5mm
Size 61 – 172.5mm
Chain
SRAM Red E1
Cassette
SRAM Red E1, 10-33T, 12-Speed
Front Derailleur
SRAM Red AXS E1
Rear Derailleur
SRAM Red AXS E1
Brake Rotors
SRAM Paceline X Centerlock
Accessories
Cervélo Front Computer/Accessory Mount 887
Cervélo Rear Accessory Mount
Hammerhead Karoo 3
Maximum Tire Width (actual)
34mm
