Please, Before ordering, contact us for availability. Thank you.

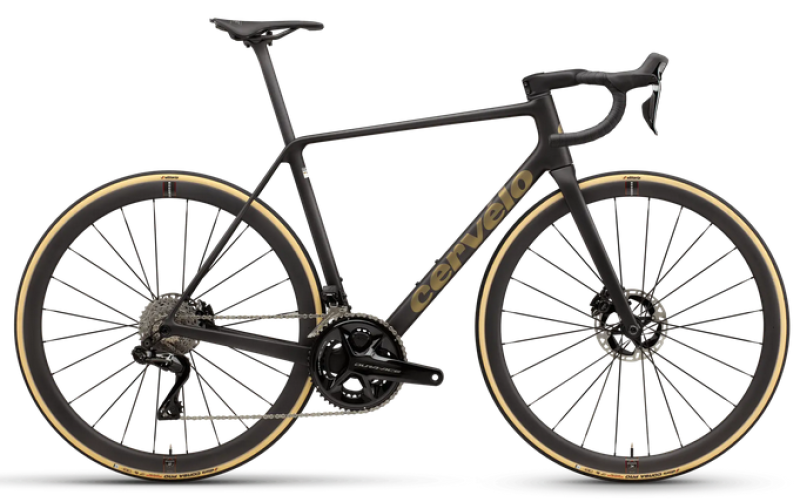

The Cervélo R5 is engineered for those who demand peak performance on every ascent. Weighing just 5.97 kg in a size 56, it exceeds the UCI's minimum weight limit by nearly a kilogram, making it one of the lightest road bikes available today.
Key Features:
Featherlight Frame: The R5's frame weighs a mere 651 grams, complemented by a 298-gram fork, achieved through meticulous carbon layup and component optimization.
Race-Ready Geometry: Designed with a geometry that mirrors the S5, ensuring responsive handling and efficient power transfer, ideal for competitive cycling.
Integrated Handlebar/Stem: The new HB18 one-piece bar/stem reduces weight by nearly 150 grams and enhances aerodynamics by 2 watts compared to its predecessor.
Ultralight Reserve 34|37 SL Wheels: Specifically developed for the R5, these wheels are 60 grams lighter without compromising strength or stiffness.
Custom Fit Options: With 15 different size combinations, Cervélo ensures a tailored fit for every rider, with expert assistance available at authorized retailers.
Whether you're tackling the steep climbs of the Tour de France or seeking an exhilarating ride on your local roads, the Cervélo R5 delivers unmatched performance and agility.
Cervélo R5 – Dura-Ace Di2
Sizes: 48cm, 51cm, 54cm, 56cm, 58cm, 61cm
Fork: Cervélo All-Carbon, Tapered R5 Fork
Integrated Handlebar: Cervélo HB18 Carbon
Handlebar Width:
Size 48 – 36cm
Size 51 – 38cm
Size 54 – 40cm
Size 56 – 40cm
Size 58 – 40cm
Size 61 – 40cm
Stem Length:
Size 48 – 80mm
Size 51 – 90mm
Size 54 – 100mm
Size 56 – 100mm
Size 58 – 110mm
Size 61 – 120mm
Seatpost: Cervélo SP33 Carbon
Seatpost Offset:
Size 48 – 0mm
Size 51 – 0mm
Size 54 – 0mm
Size 56 – 0mm
Size 58 – 15mm
Size 61 – 15mm
Saddle: Prologo Nago R4 PAS Nack Lightweight
Bottom Bracket: CeramicSpeed SL, BBright for 24mm spindle
Headset: FSA SL IS2 1-1/4, 45° x 45° / 1-1/2, 36° x 45°
Front Thru Axle: Cervélo Aero Thru Axle Front, M12x1.5mm, 122mm length
Rear Thru Axle: Cervélo Aero Thru Axle Rear, M12x1.0mm, 169mm length
Front Wheel: Reserve 34TA, DT Swiss 180, 12x100mm, 24H, Centerlock, tubeless compatible
Rear Wheel: Reserve 37TA, DT Swiss 180, 12x142mm, HG freehub, 24H, Centerlock, tubeless compatible
Tires: Vittoria Corsa Pro Speed TLR G2.0 700x26c
Brake Levers: Shimano Dura-Ace R9270
Crankset: Shimano Dura-Ace R9200, 52/36T
Power Meter: 4iiii Precision Pro, GEN3+ Dual Sided
Crank Length:
Size 48 – 165mm
Size 51 – 165mm
Size 54 – 170mm
Size 56 – 170mm
Size 58 – 172.5mm
Size 61 – 172.5mm
Chain: Shimano M9100
Cassette: Shimano Dura-Ace R9200, 11-34T, 12-Speed
Front Derailleur: Shimano Dura-Ace R9250
Rear Derailleur: Shimano Dura-Ace R9250
Brake Rotors: Shimano CL900 Centerlock
Accessories:
Cervélo Front Computer/Accessory Mount 887
Cervélo Rear Accessory Mount
Maximum Tire Clearance (effective): 34mm
